Titus T-Type Soft-close 110° Clip-on Cabinet Hinge (2 Pack)

Titus T-Type 110 degree full overlay premium clip on hinge with integrated soft close, plus mounting, plates hinge arm covers and screws.

• Pack of 2 hinges, mounting plates, hinge arm cover and 4 screws

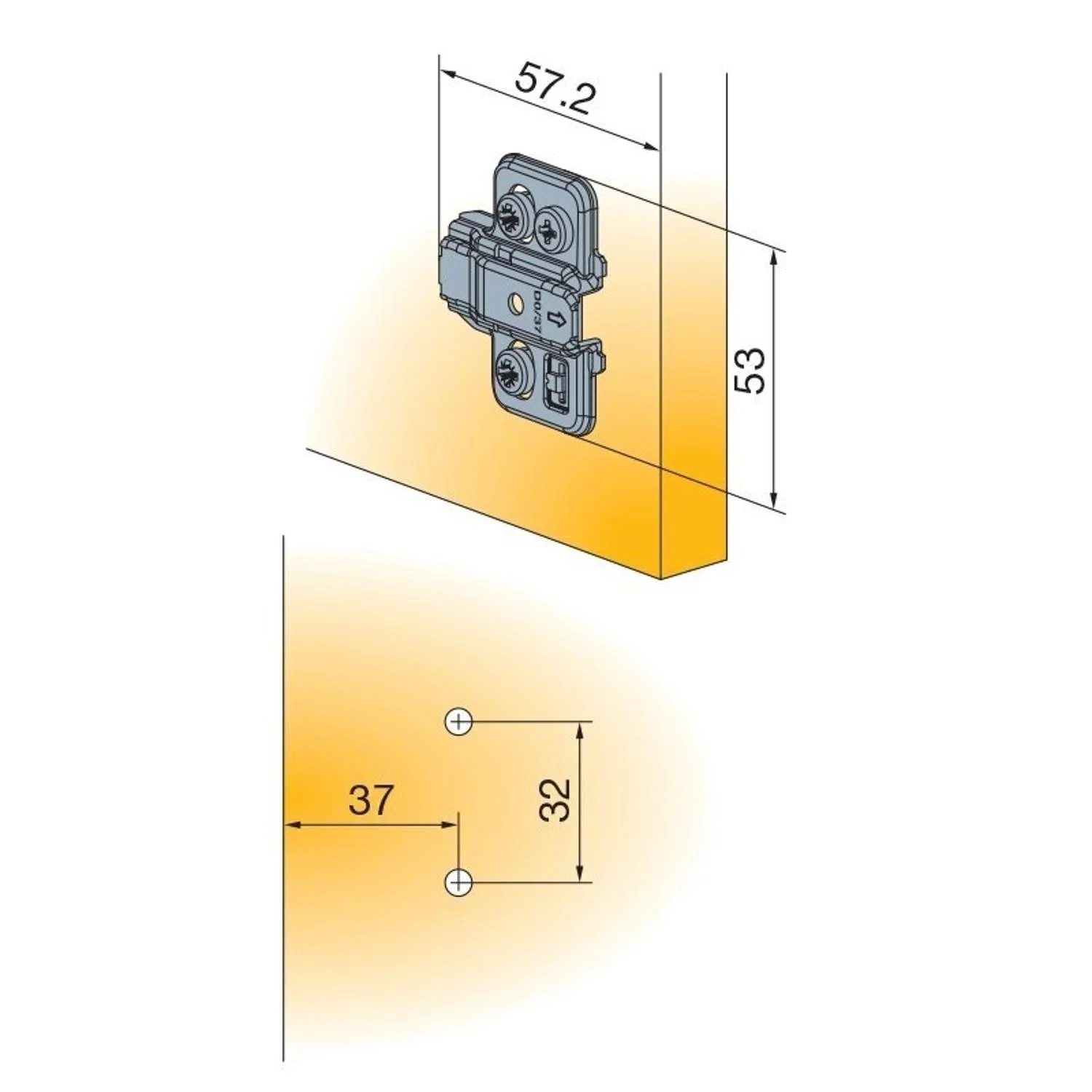

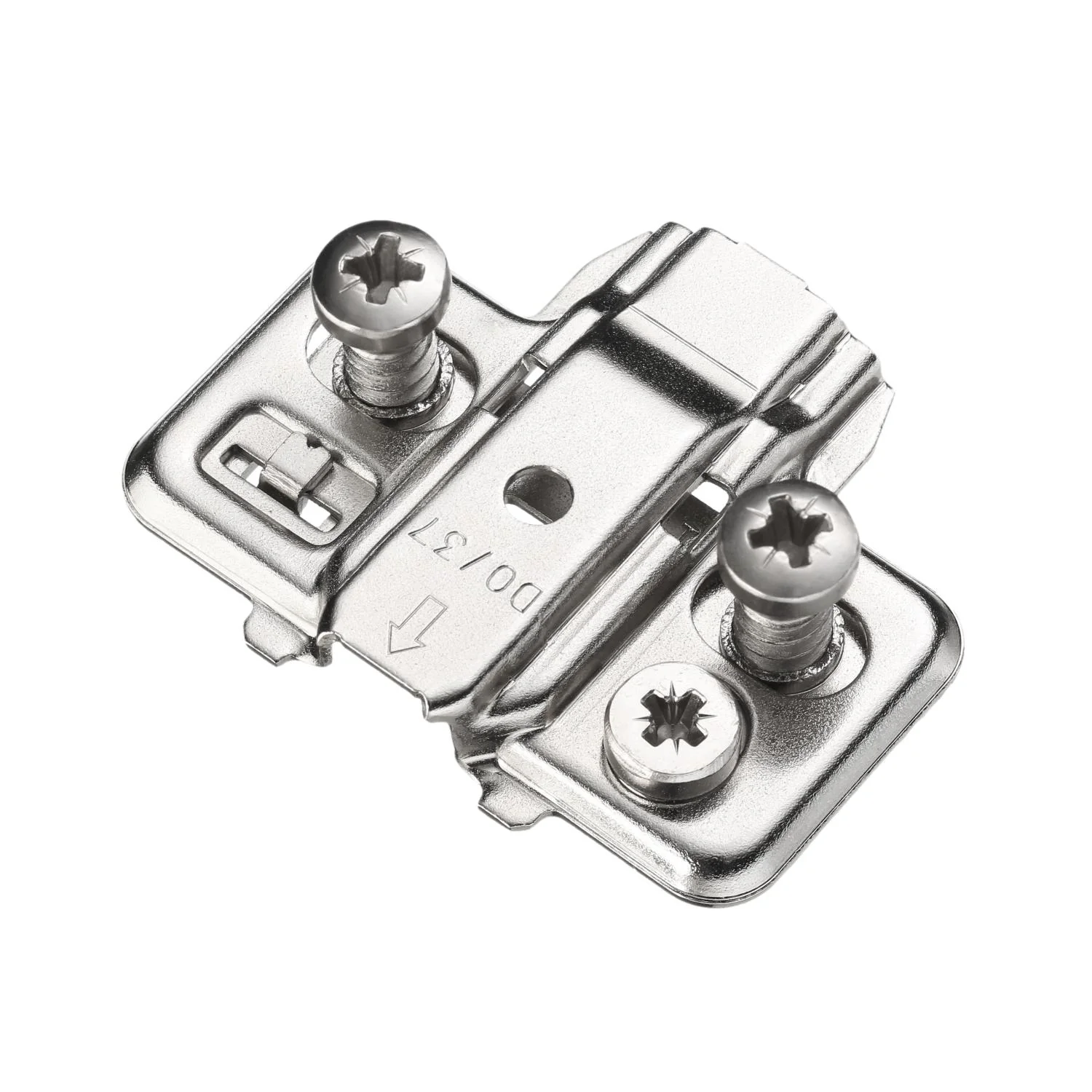

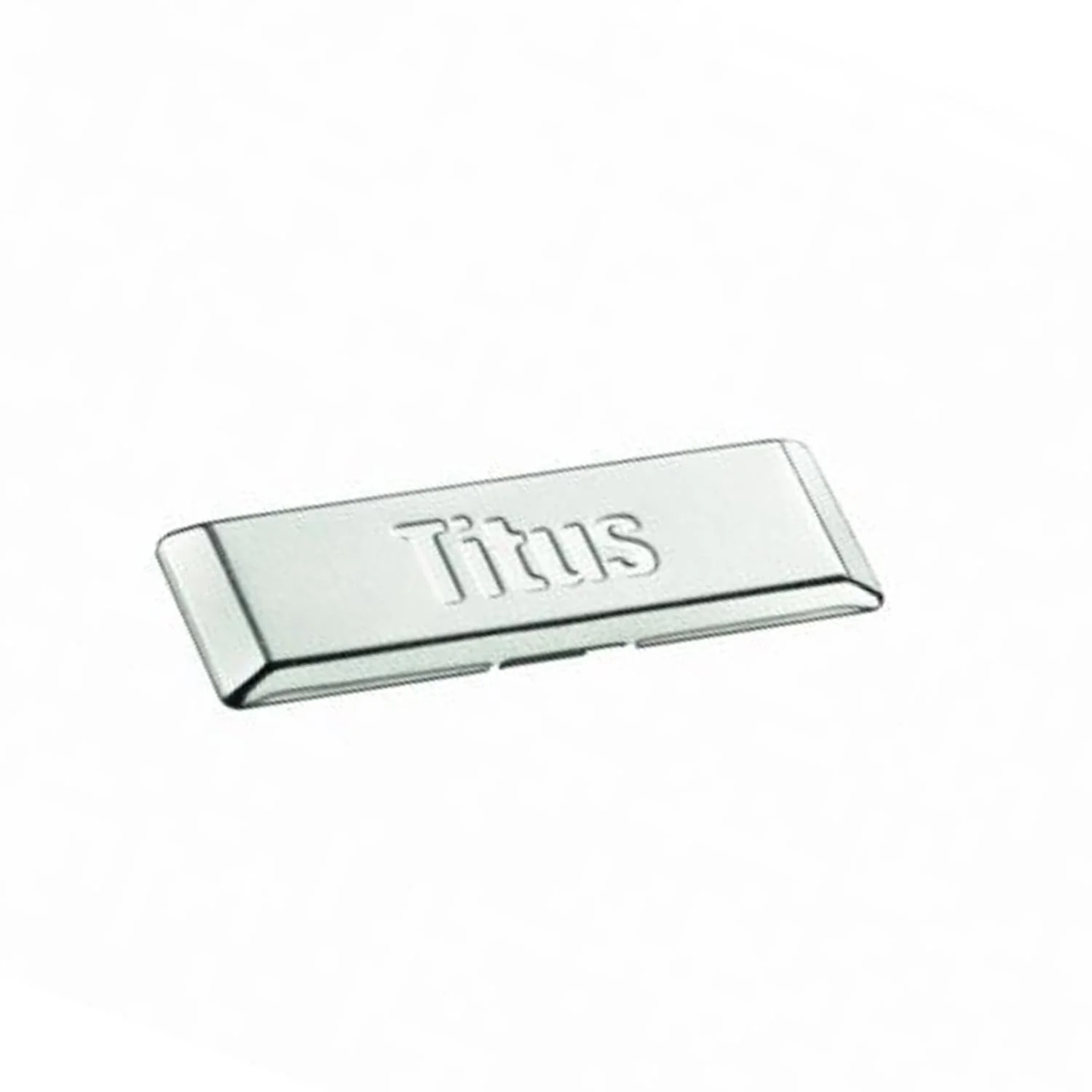

• Hinge model 701-0AT0-054, Mounting plate 7010-0KC0-054, Hinge arm cover 728-1286-054.
• Screw Size: 4.0mm x 17mm
• Opening Angle: 110°

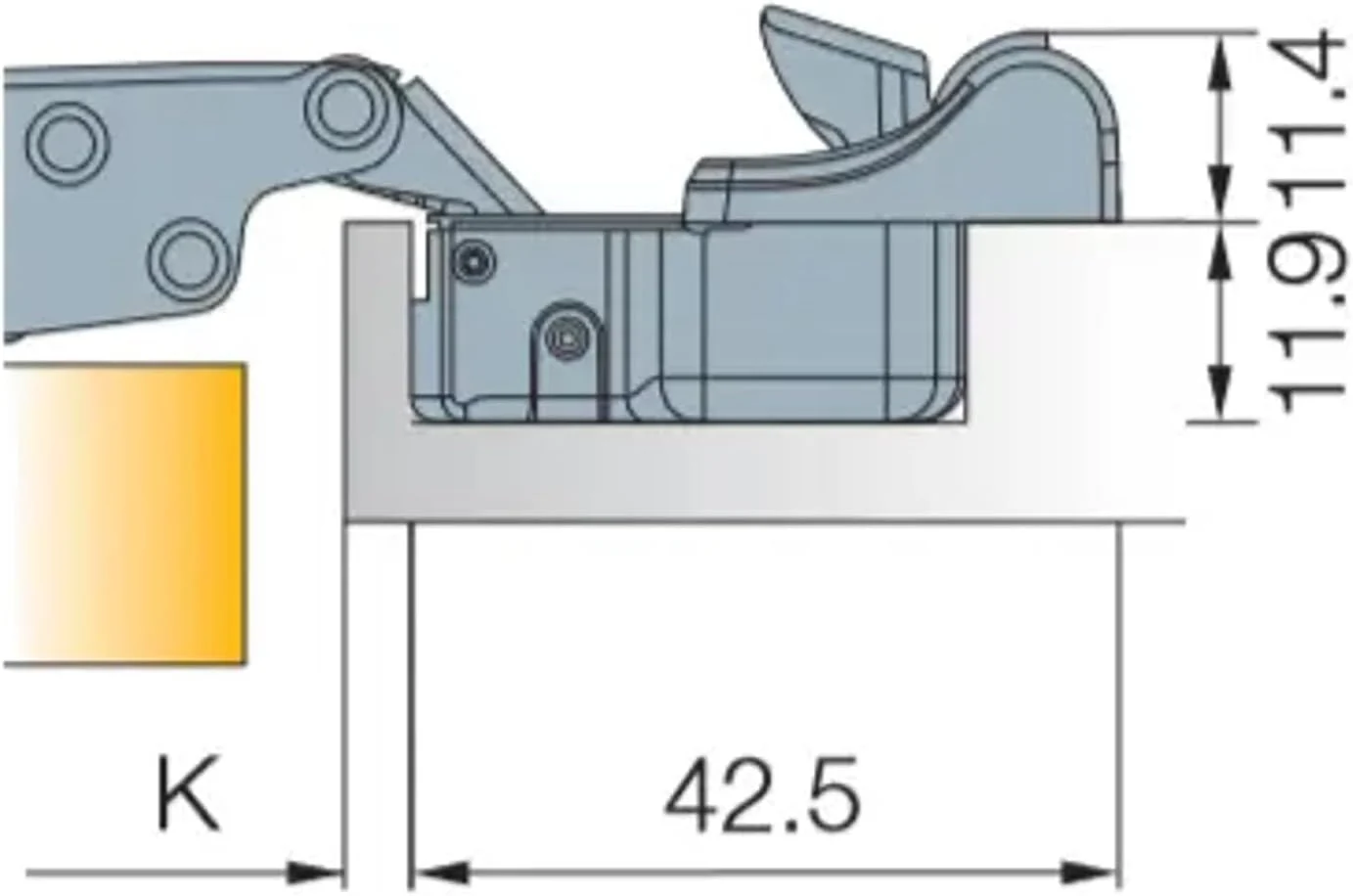

• Drilling diameter for hinge cup: 35mm
• Drilling depth: 11.7mm
• Hinge on plate mounting system: '3Way' snap-on
• Side Adjustment: +3/-1mm
• Height Adjustment: +2/-2mm
• Depth Adjustment: +4/-1mm
• Compatible with various popular kitchens including Wren and B&Q
