Hettich Sensys W30 8639i Corner Cabinet Hinges 95 Degree & Mounts (2 Pack)
Hettich Sensys angle hinges for 95 degree. Integrated silent system. Mounting plates included. Pack of 2.
- Sensys angle hinge W30, part number 9088017
- With integrated Silent System, with self closing feature (Sensys 8639i W30)
- Quality classification under EN 15570, Level 3
- Opening angle 95°
- For door thickness 15 - 28 mm
- Door mounting option inset (B -16 mm)

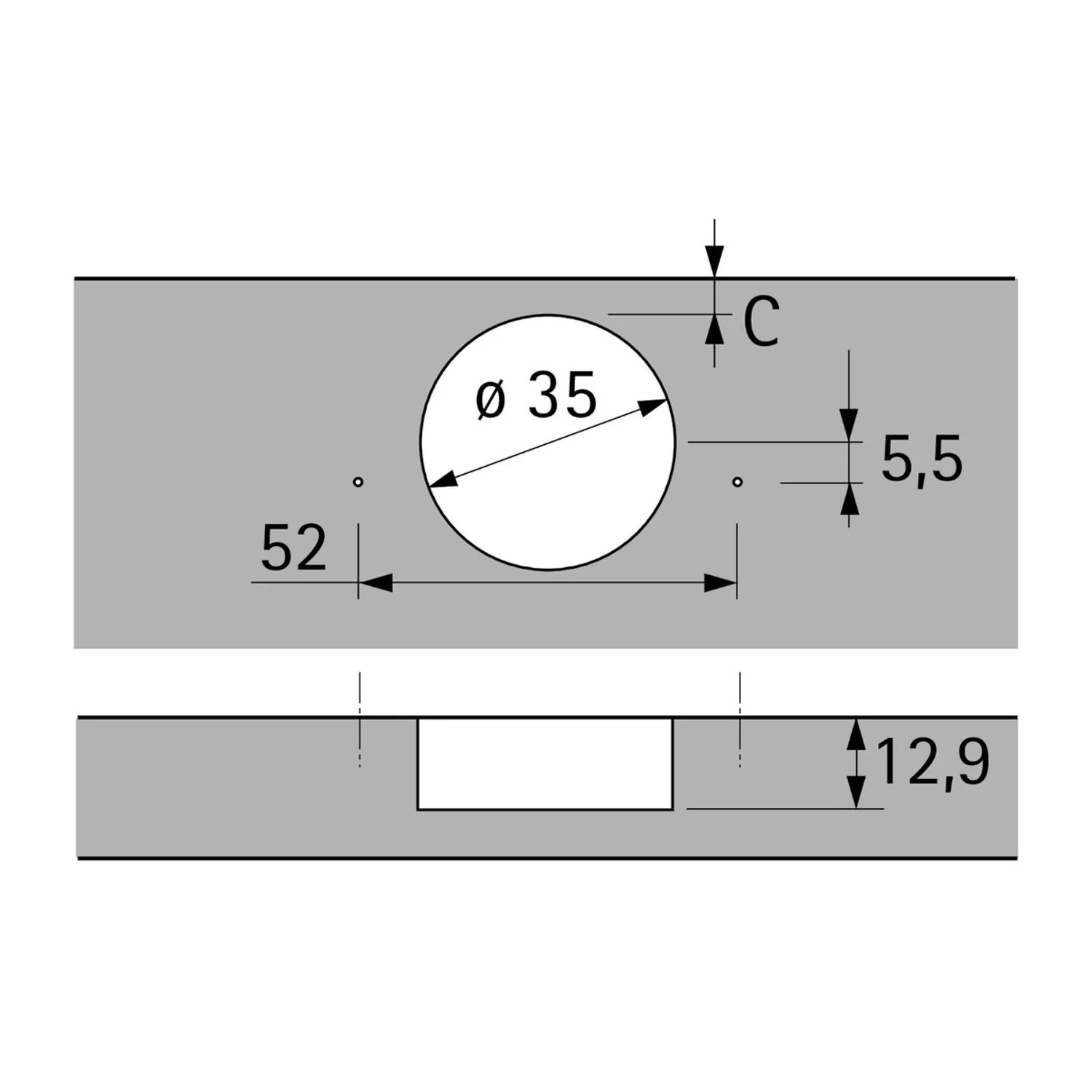

- TH-drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm
- Installation for screwing on (TH 52)
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm

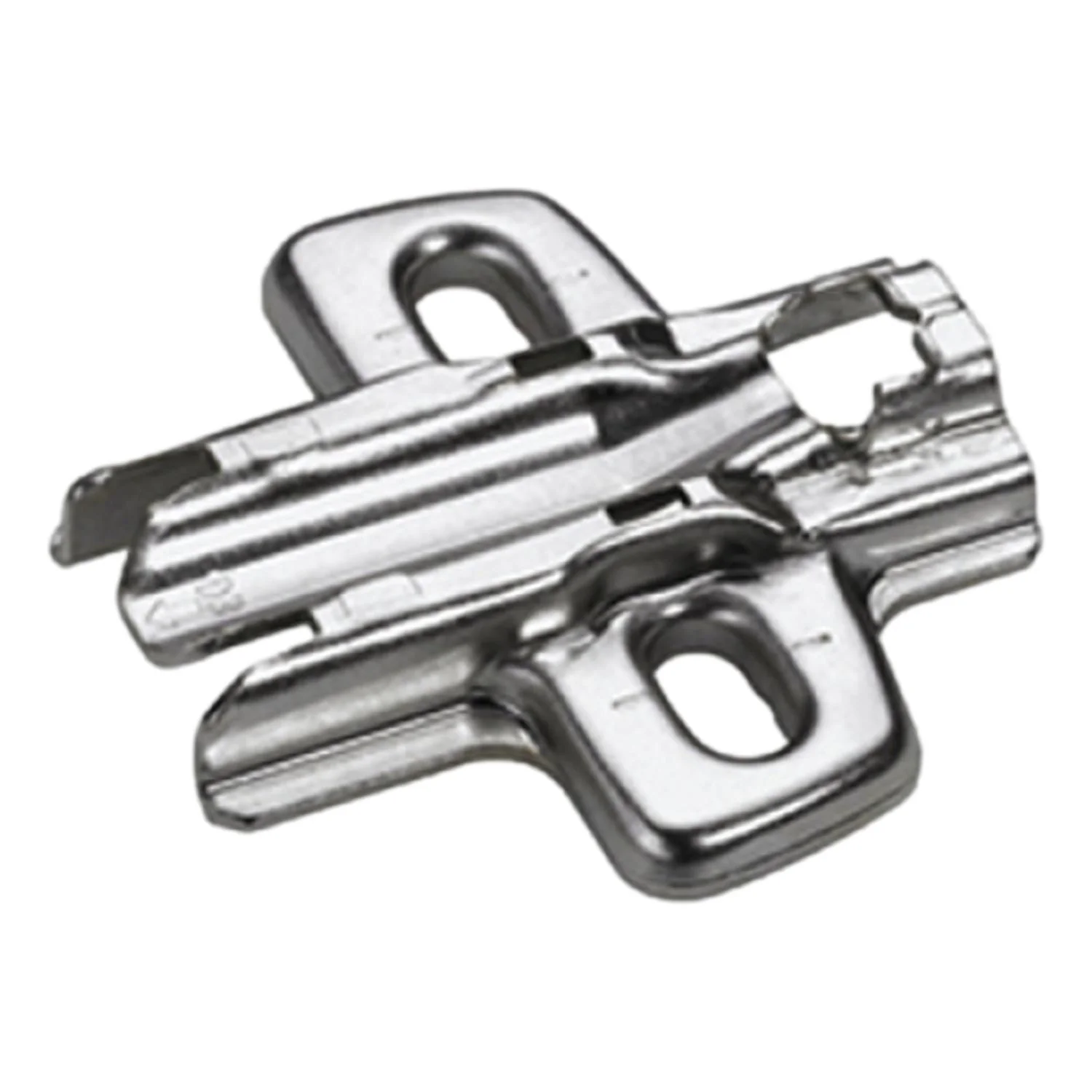

- Height adjustment at mounting plate
- Die-cast zinc, steel nickel plated
- Pack of 2 hinges and mounts
$7.60
Original: $25.32
-70%Hettich Sensys W30 8639i Corner Cabinet Hinges 95 Degree & Mounts (2 Pack)—
$25.32
$7.60
Description
Hettich Sensys angle hinges for 95 degree. Integrated silent system. Mounting plates included. Pack of 2.
- Sensys angle hinge W30, part number 9088017
- With integrated Silent System, with self closing feature (Sensys 8639i W30)
- Quality classification under EN 15570, Level 3
- Opening angle 95°
- For door thickness 15 - 28 mm
- Door mounting option inset (B -16 mm)
- TH-drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm
- Installation for screwing on (TH 52)
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- Die-cast zinc, steel nickel plated
- Pack of 2 hinges and mounts
