Hettich Sensys W45 8639i Hinge 45 Degree Corner Cabinet Soft Close
Hettich Sensys angle hinge for 45 degree corner cabinets. Integrated soft close. Mounting plates not included.
- W45 With integrated Silent System, with self closing feature (Sensys 8639i W45), part number 9088018
- Opening angle 95°
- For door thickness 15 - 28 mm
- Door mounting option overlay (B 9 mm)

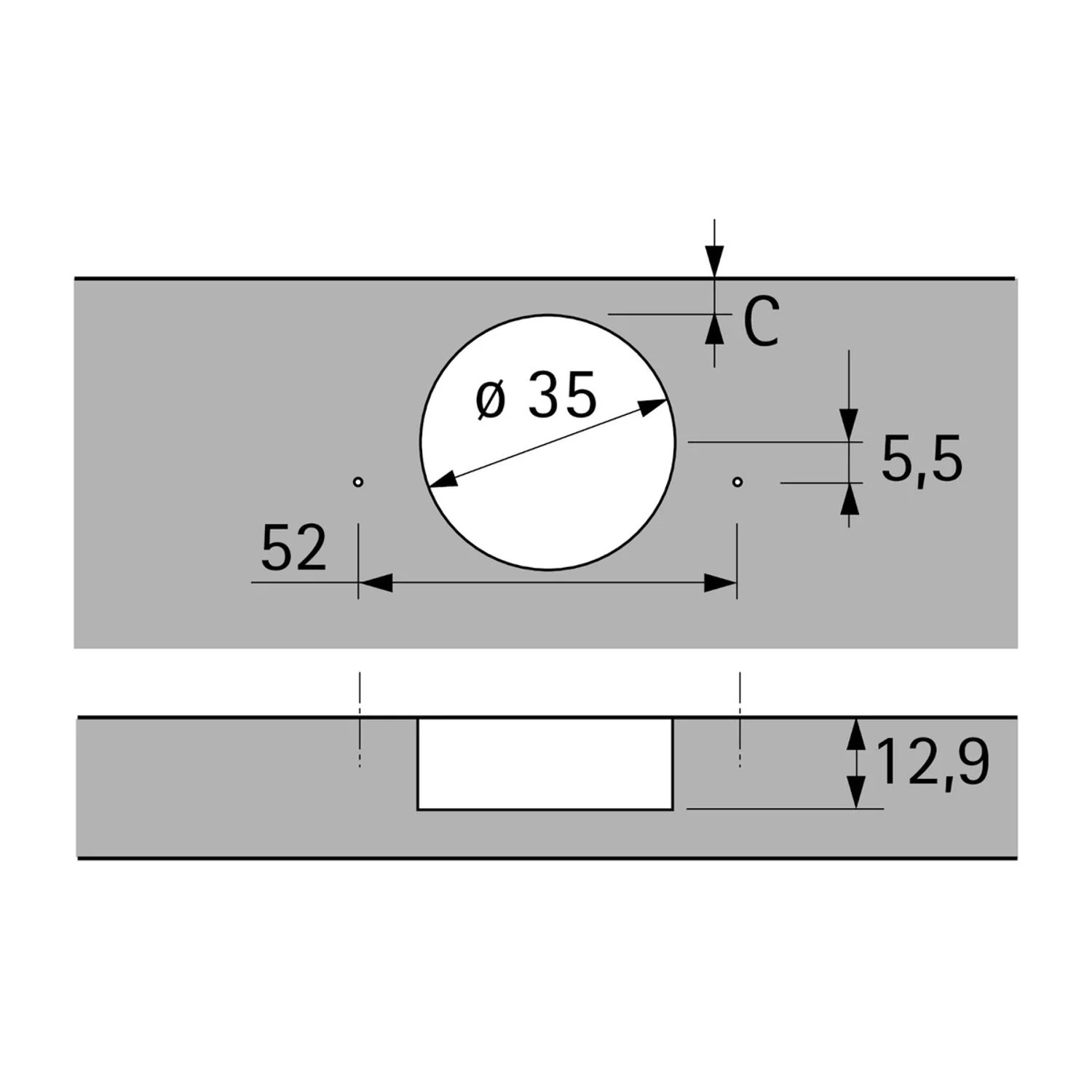

- TH-drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm
- Installation for screwing on (TH 52)
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate steel nickel plated
$3.84
Original: $12.80
-70%Hettich Sensys W45 8639i Hinge 45 Degree Corner Cabinet Soft Close—
$12.80
$3.84
Description
Hettich Sensys angle hinge for 45 degree corner cabinets. Integrated soft close. Mounting plates not included.
- W45 With integrated Silent System, with self closing feature (Sensys 8639i W45), part number 9088018
- Opening angle 95°
- For door thickness 15 - 28 mm
- Door mounting option overlay (B 9 mm)
- TH-drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm
- Installation for screwing on (TH 52)
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate steel nickel plated
