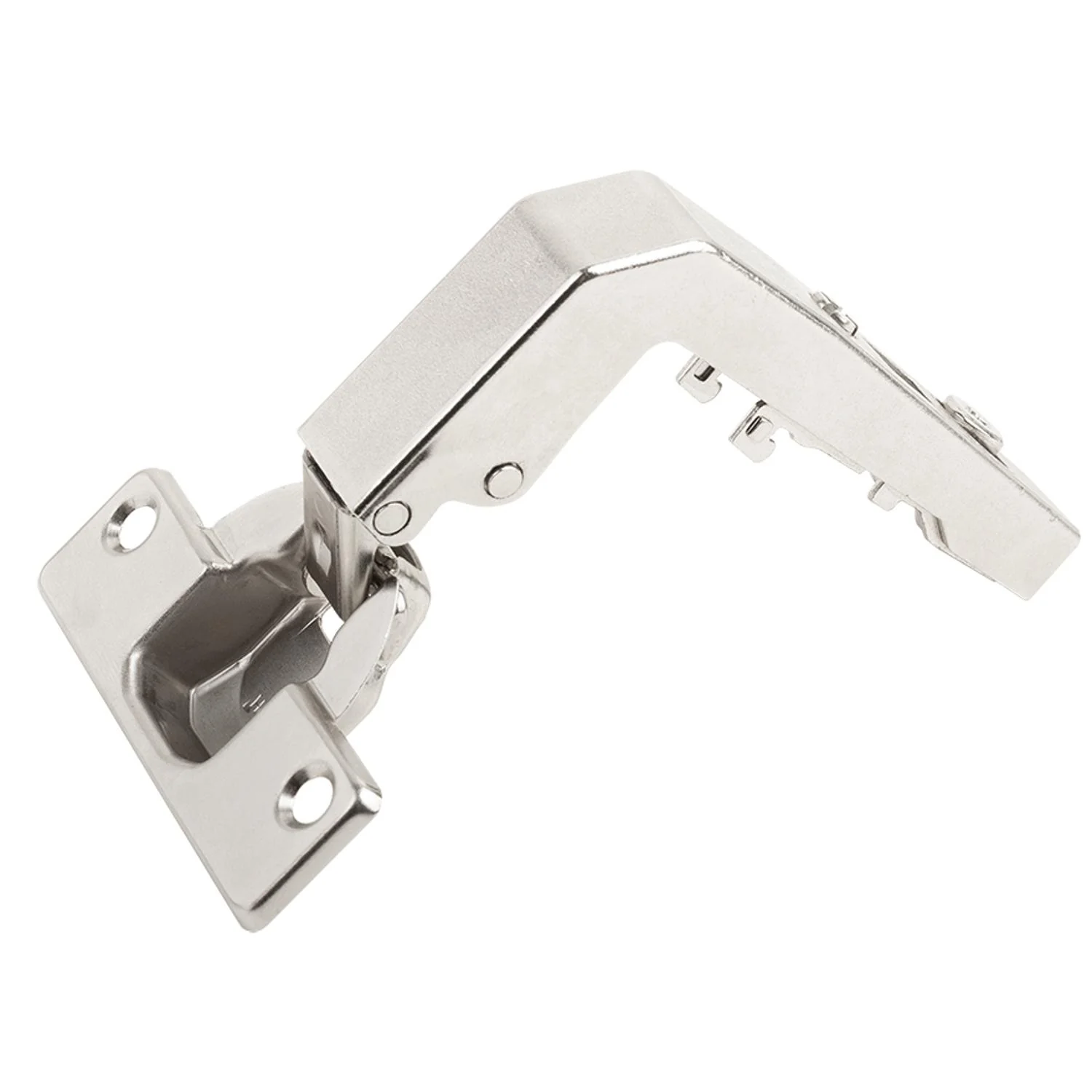

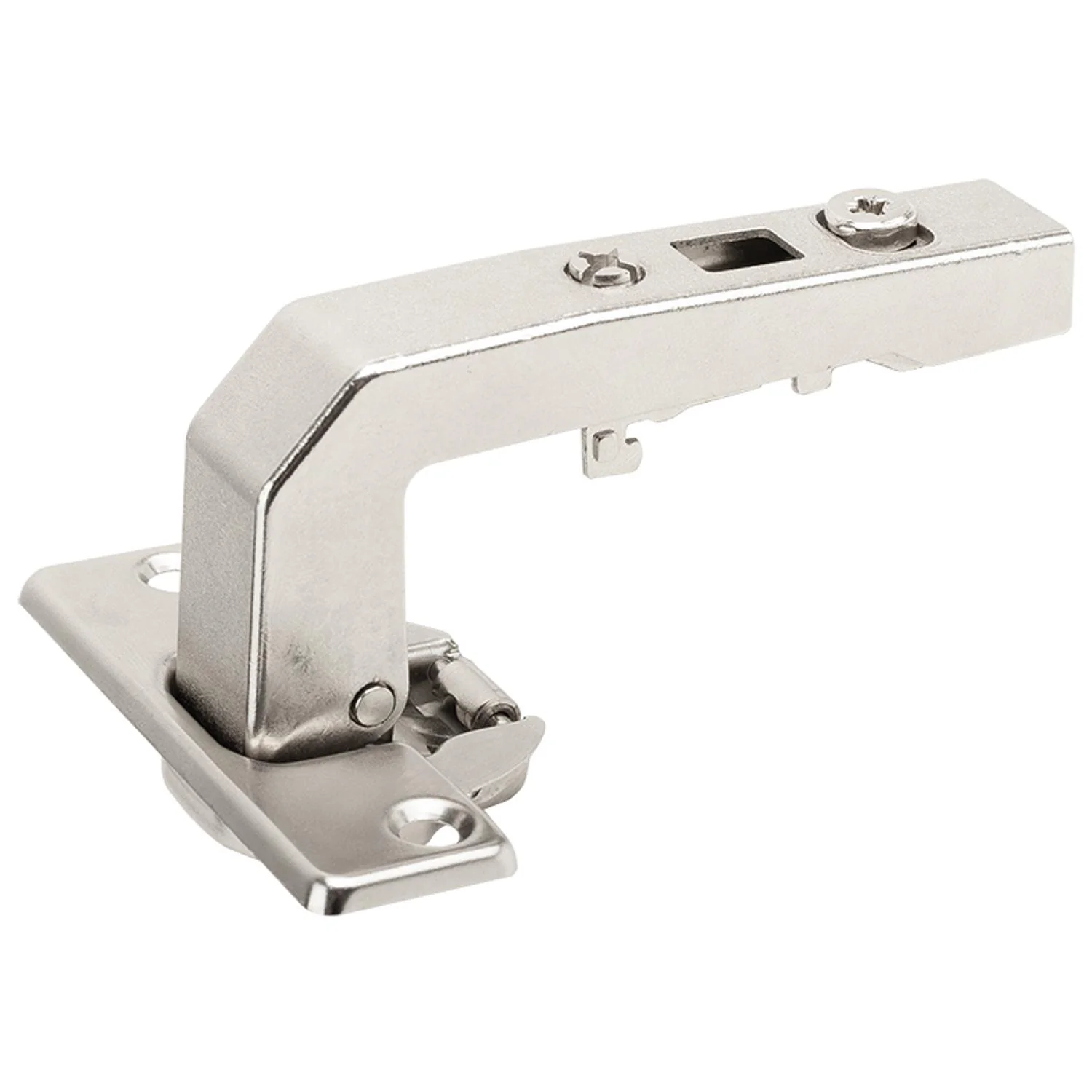

Hettich Intermat 9936 W90 95˚ Angle Overlay Hinge 9044844
Hettich Intermat 9936 W90 Hinge. Price is for one hinge.
Please note hinge mounting plates and screws are not included, please purchase separately.
Please note hinge mounting plates and screws are not included, please purchase separately.
- Intermat angle hinge W90
- With self closing feature (Intermat 9936 W90)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 - 28 mm
- Door mounting option inset (B 5)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated adjustment of door offset +2 mm / -2 mm
- Integrated reveal adjustment +2 mm / -2 mm
- Height adjustment at mounting plate
- steel / die-cast zinc nickel plated
$8.17
Hettich Intermat 9936 W90 95˚ Angle Overlay Hinge 9044844—
$8.17
Description
Hettich Intermat 9936 W90 Hinge. Price is for one hinge.
Please note hinge mounting plates and screws are not included, please purchase separately.
Please note hinge mounting plates and screws are not included, please purchase separately.
- Intermat angle hinge W90
- With self closing feature (Intermat 9936 W90)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 - 28 mm
- Door mounting option inset (B 5)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated adjustment of door offset +2 mm / -2 mm
- Integrated reveal adjustment +2 mm / -2 mm
- Height adjustment at mounting plate
- steel / die-cast zinc nickel plated
