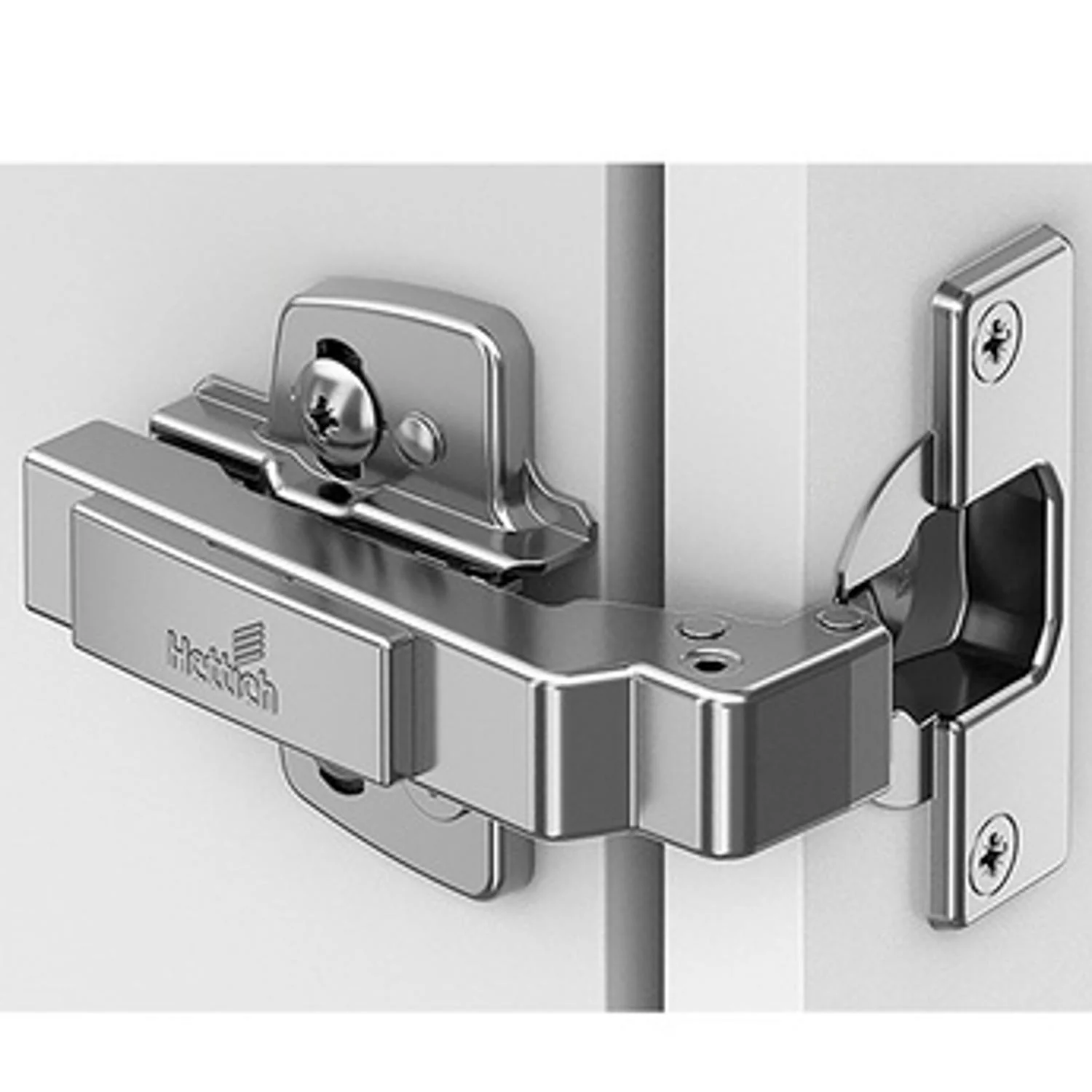

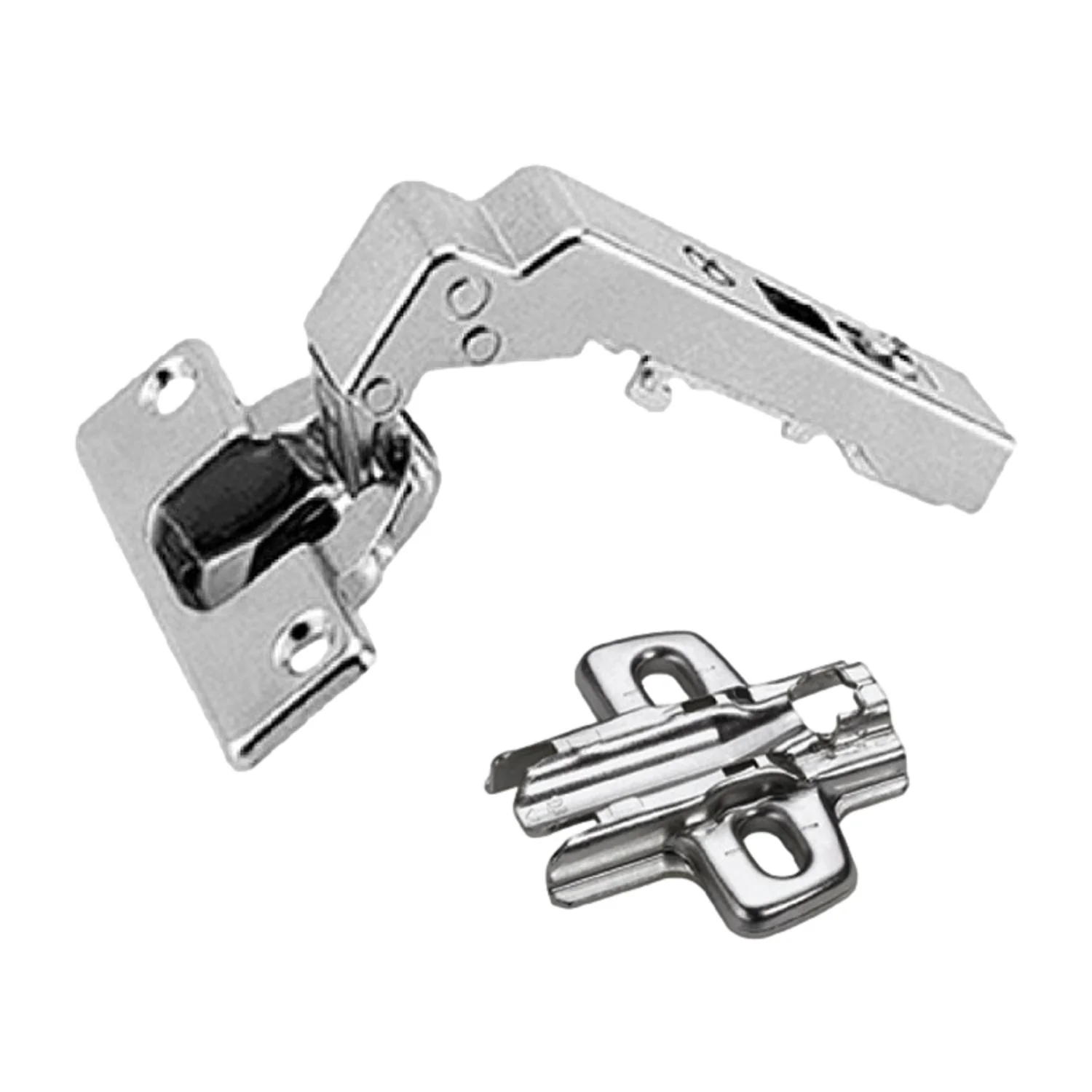

Hettich Intermat 9936 W90 95˚ Angle Inset Hinge 77708 & Mount 9075005

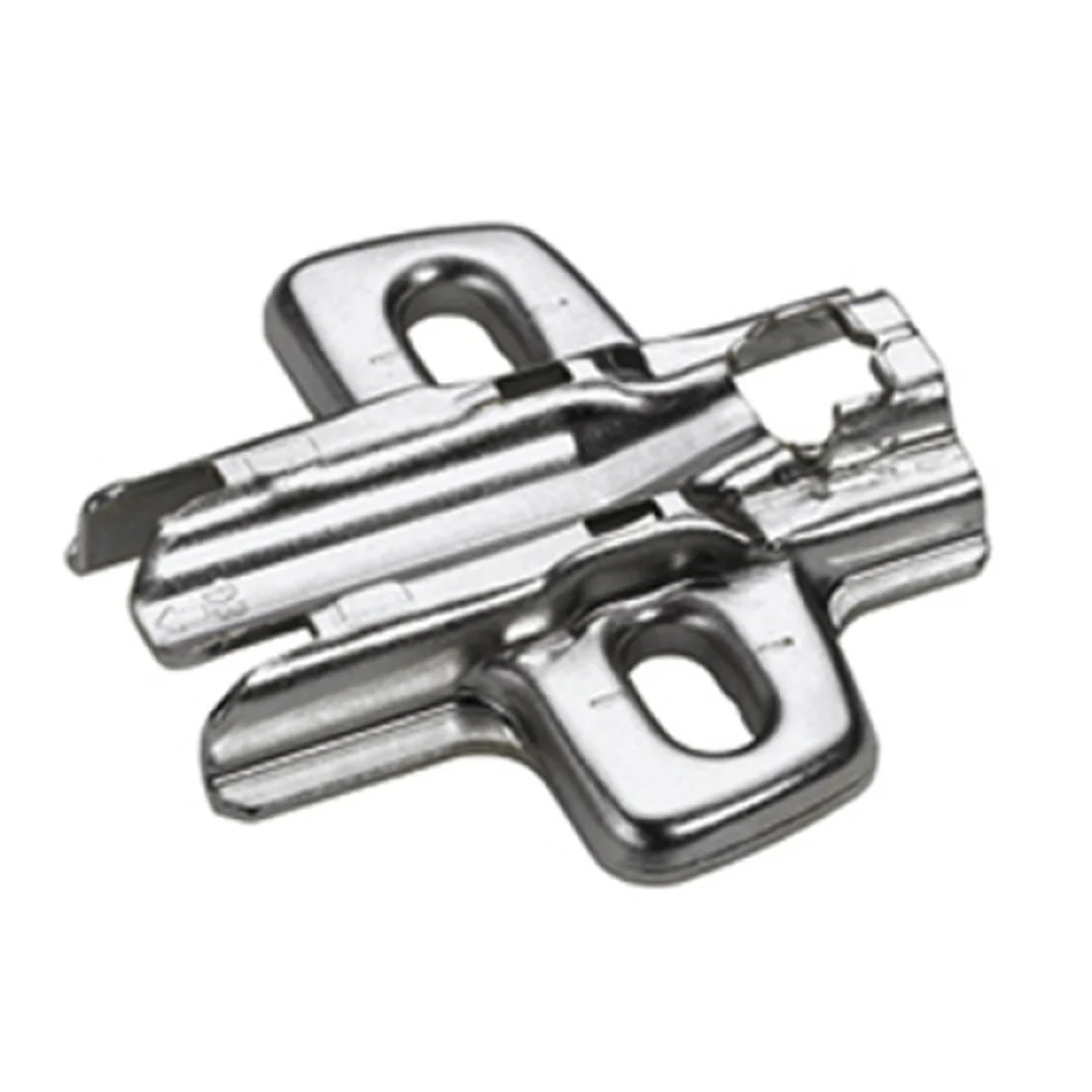

Hettich Intermat 9936 W90 Hinge and cross mounting plate with oblong hole height adjustment for Intermat and Sensys hinges.
Price is for one hinge and one mounting plate.
Price is for one hinge and one mounting plate.

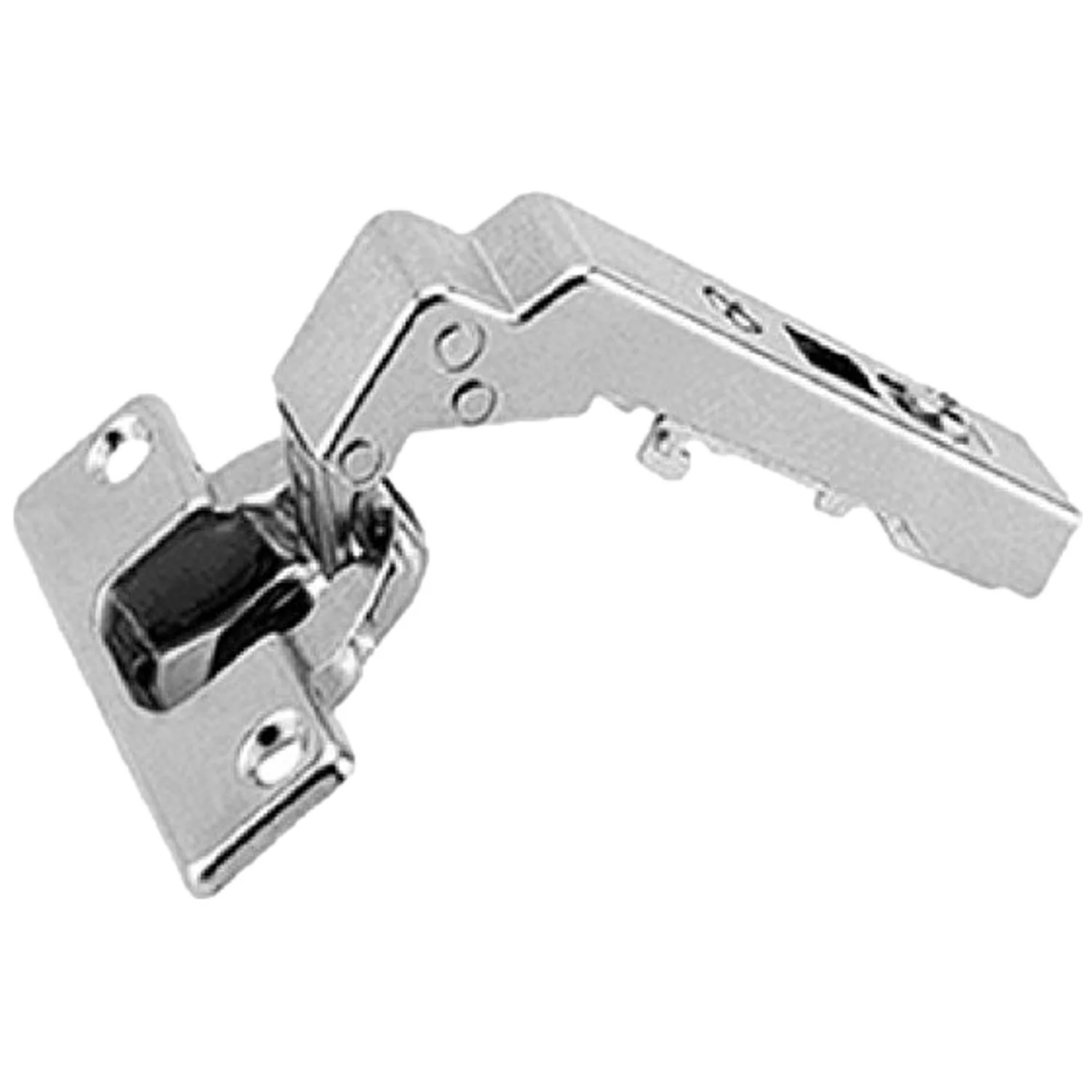

- Intermat angle hinge W90 Inset application
- With self closing feature (Intermat 9936 W90)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 - 28 mm
- Door mounting option inset (B 5)

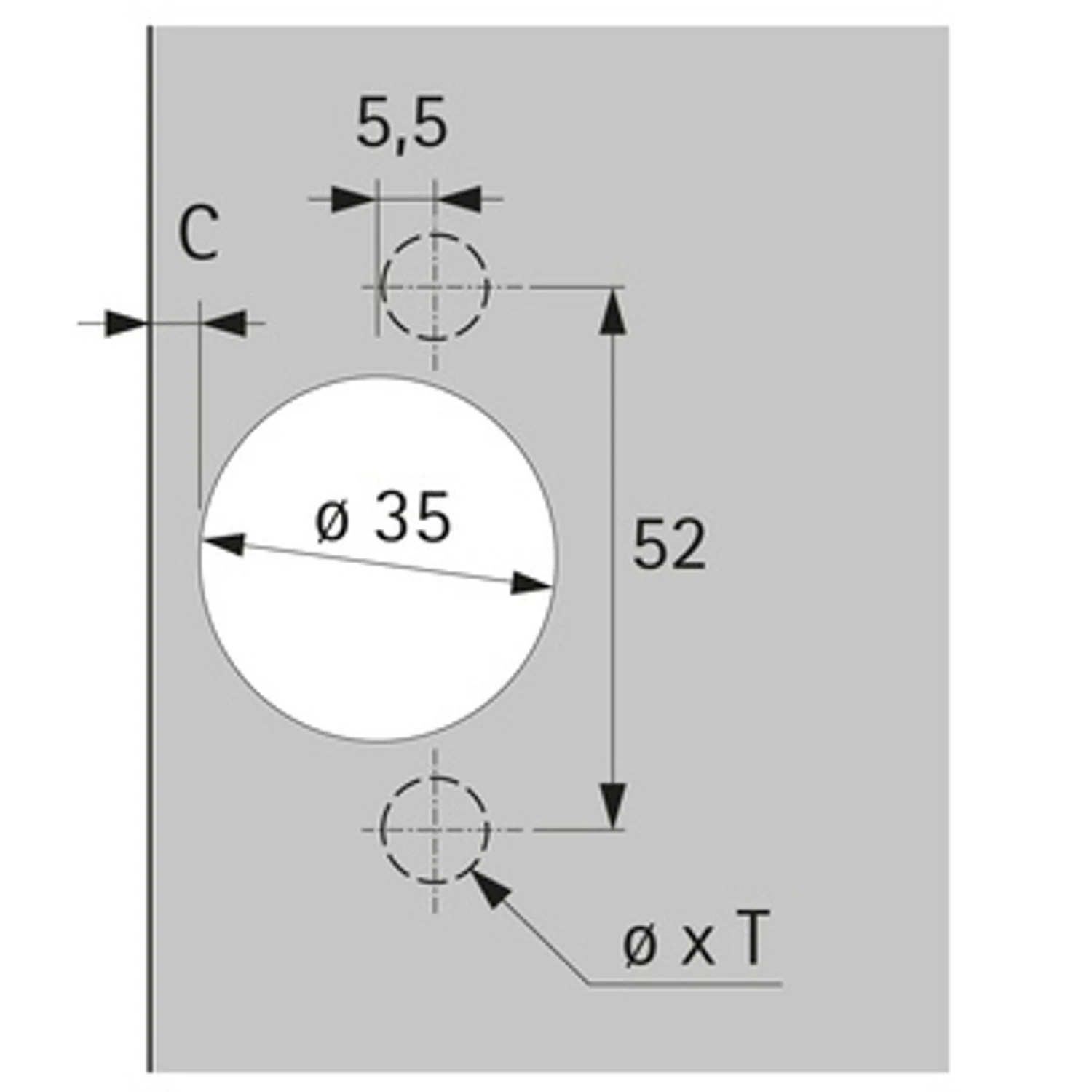

- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated adjustment of door offset +2 mm / -2 mm
- Integrated reveal adjustment +2 mm / -2 mm

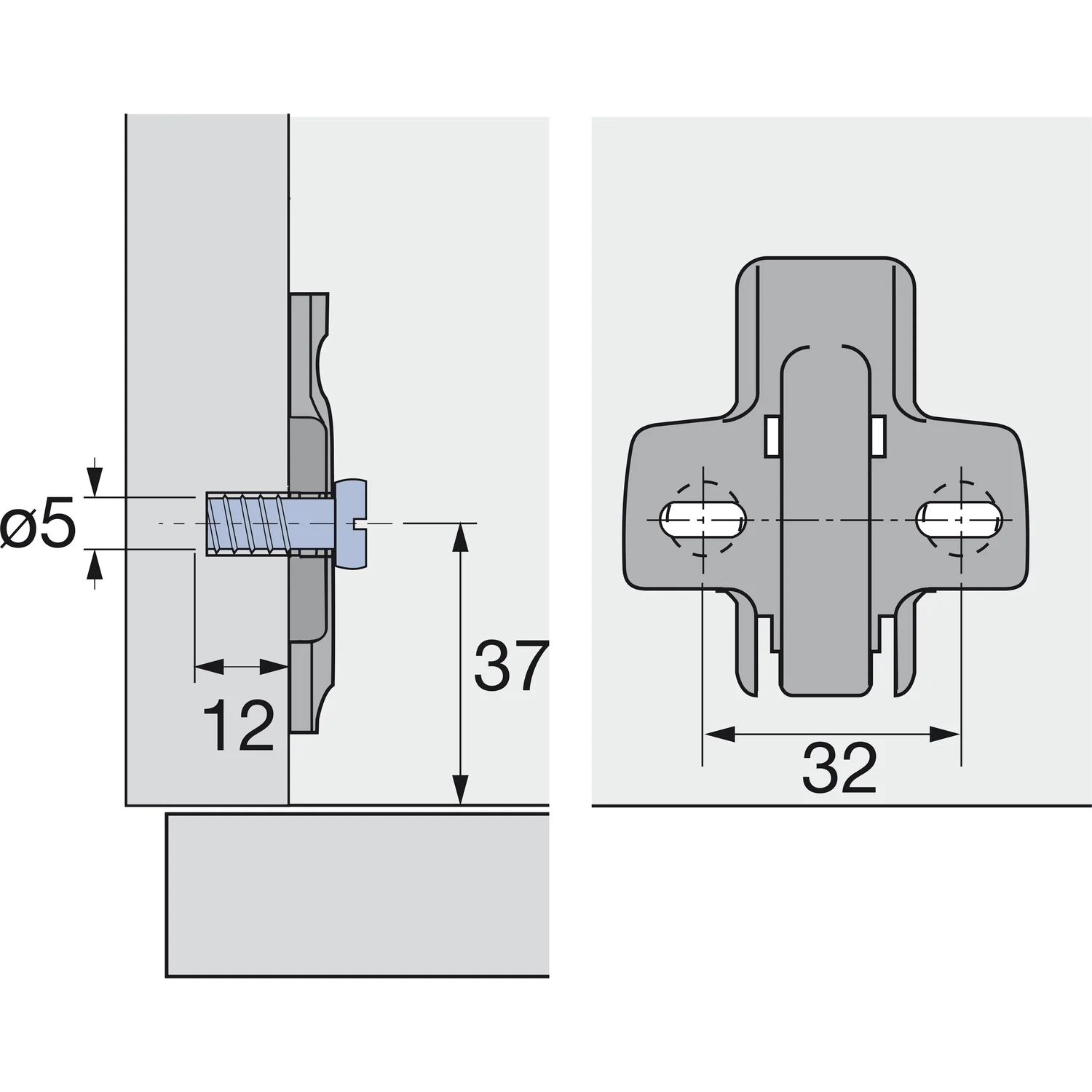

- Height adjustment at mounting plate
- steel / die-cast zinc nickel plated
$2.61
Original: $8.71
-70%Hettich Intermat 9936 W90 95˚ Angle Inset Hinge 77708 & Mount 9075005—
$8.71
$2.61
Description
Hettich Intermat 9936 W90 Hinge and cross mounting plate with oblong hole height adjustment for Intermat and Sensys hinges.
Price is for one hinge and one mounting plate.
Price is for one hinge and one mounting plate.
- Intermat angle hinge W90 Inset application
- With self closing feature (Intermat 9936 W90)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 - 28 mm
- Door mounting option inset (B 5)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated adjustment of door offset +2 mm / -2 mm
- Integrated reveal adjustment +2 mm / -2 mm
- Height adjustment at mounting plate
- steel / die-cast zinc nickel plated
