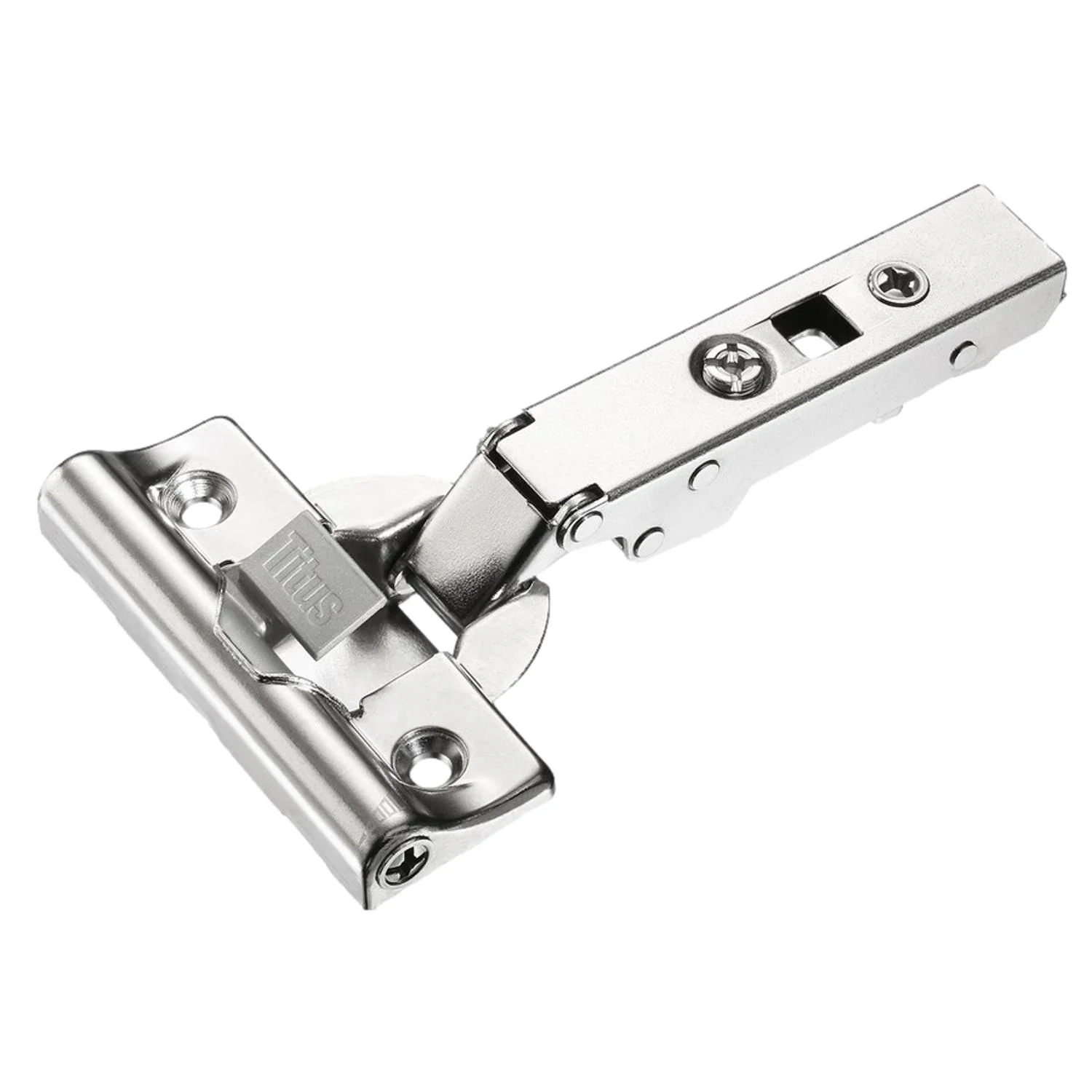

Titus T-Type 110° Full Overlay Hinge Soft Close & Plates (2 Pack)

Titus T-Type 110 degree full overlay premium clip on hinge with integrated soft close, plus mounting plates.

• Pack of 2 hinges and mounting plates (Hinge model 701-0AT0-054 & Mounting plate 7010-0KC0-054)
• Opening Angle: 110°

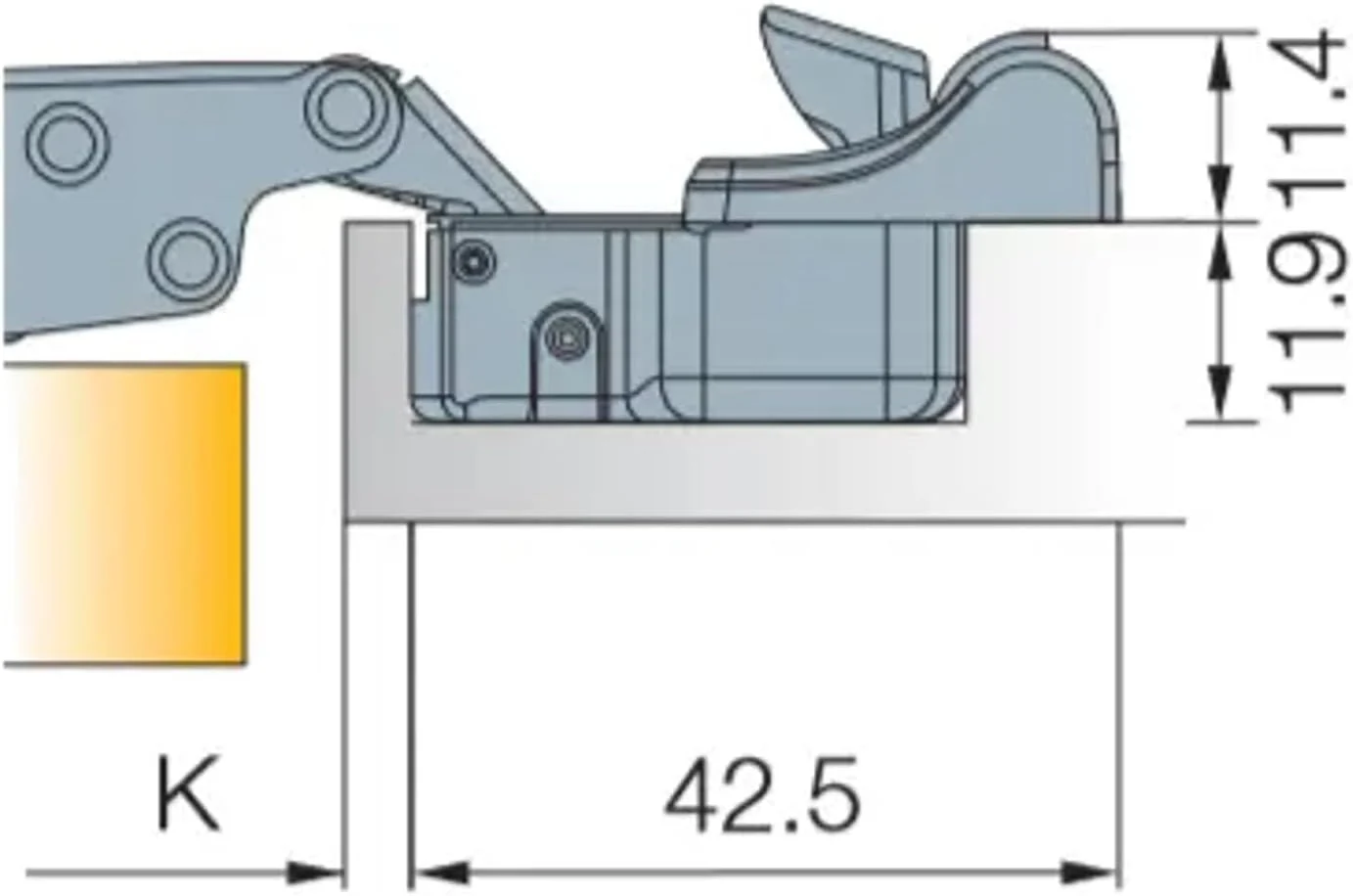

• Drilling diameter for hinge cup: 35mm
• Drilling depth: 11.7mm
• Hinge on plate mounting system: '3Way' snap-on
• Side Adjustment: +3/-1mm
• Height Adjustment: +2/-2mm
• Depth Adjustment: +4/-1mm
• Screws not included
