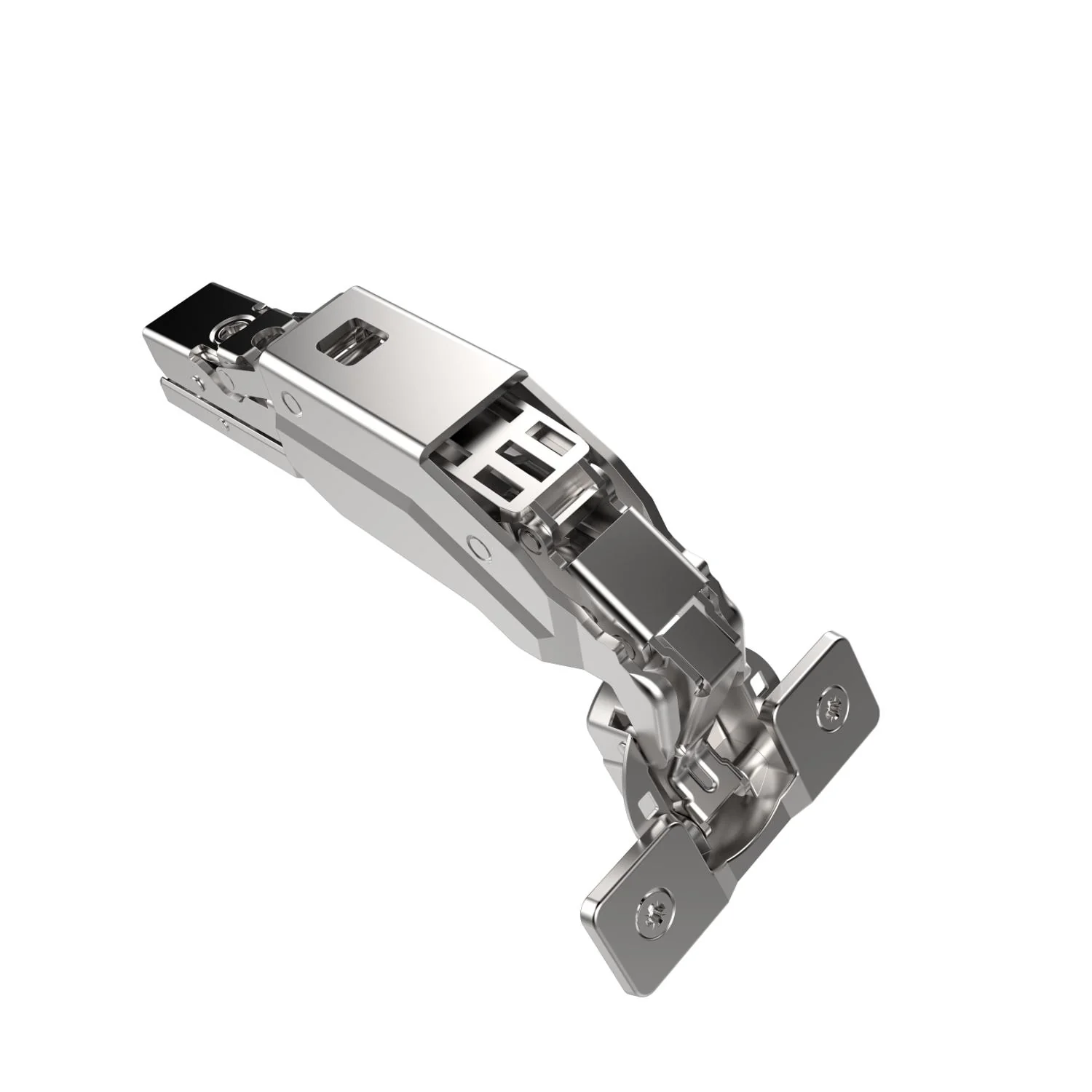

Titus T-Type 170° Full Overlay Hinge Soft Close & Plates (2 Pack)

Titus T-Type 170 degree full overlay premium clip on hinges with integrated soft close, plus 2 mounting plates.

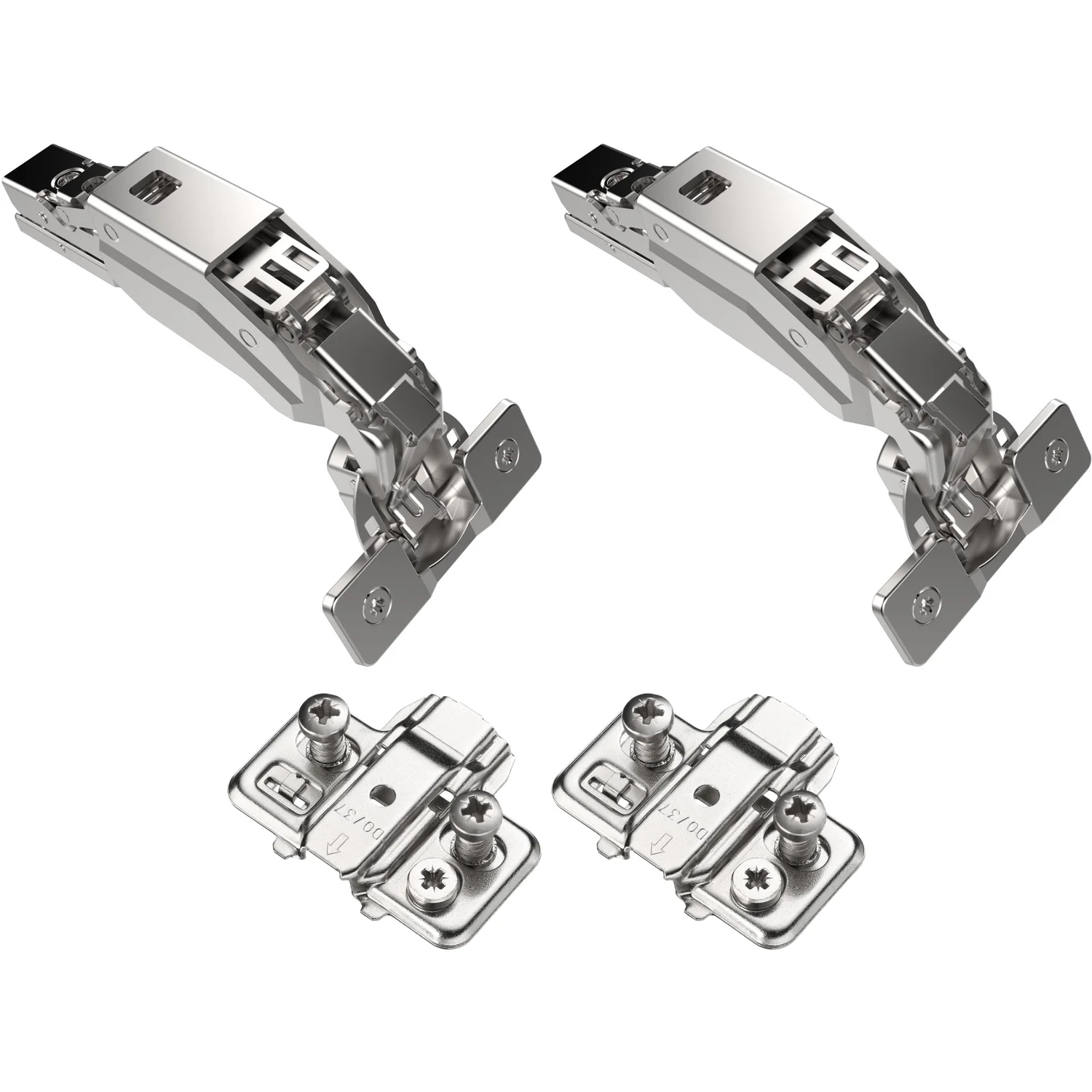

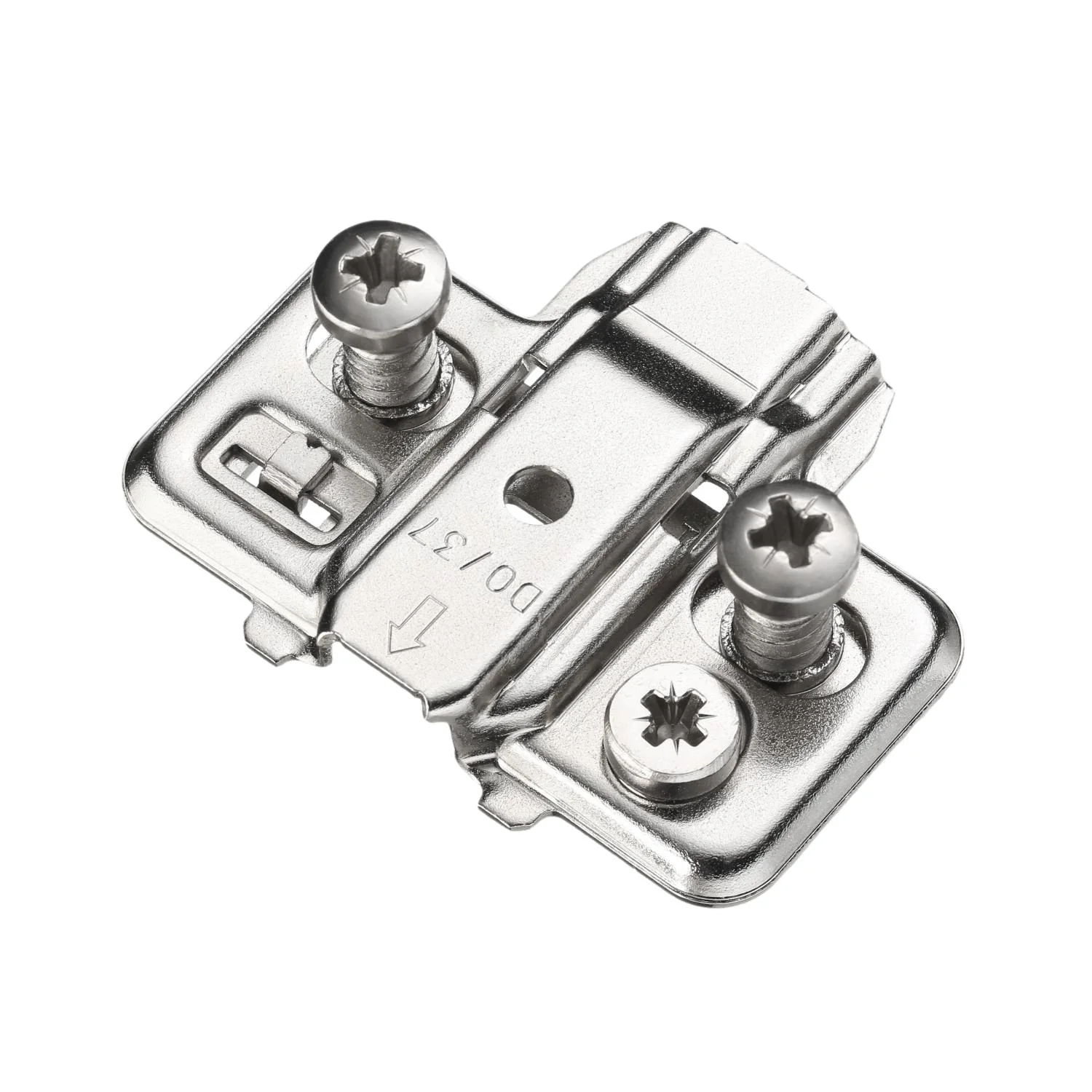

• Pack of 2 hinges and mounting plates (Hinge model 701-0ET0-054 & Mounting plate 7010-0KC0-054).

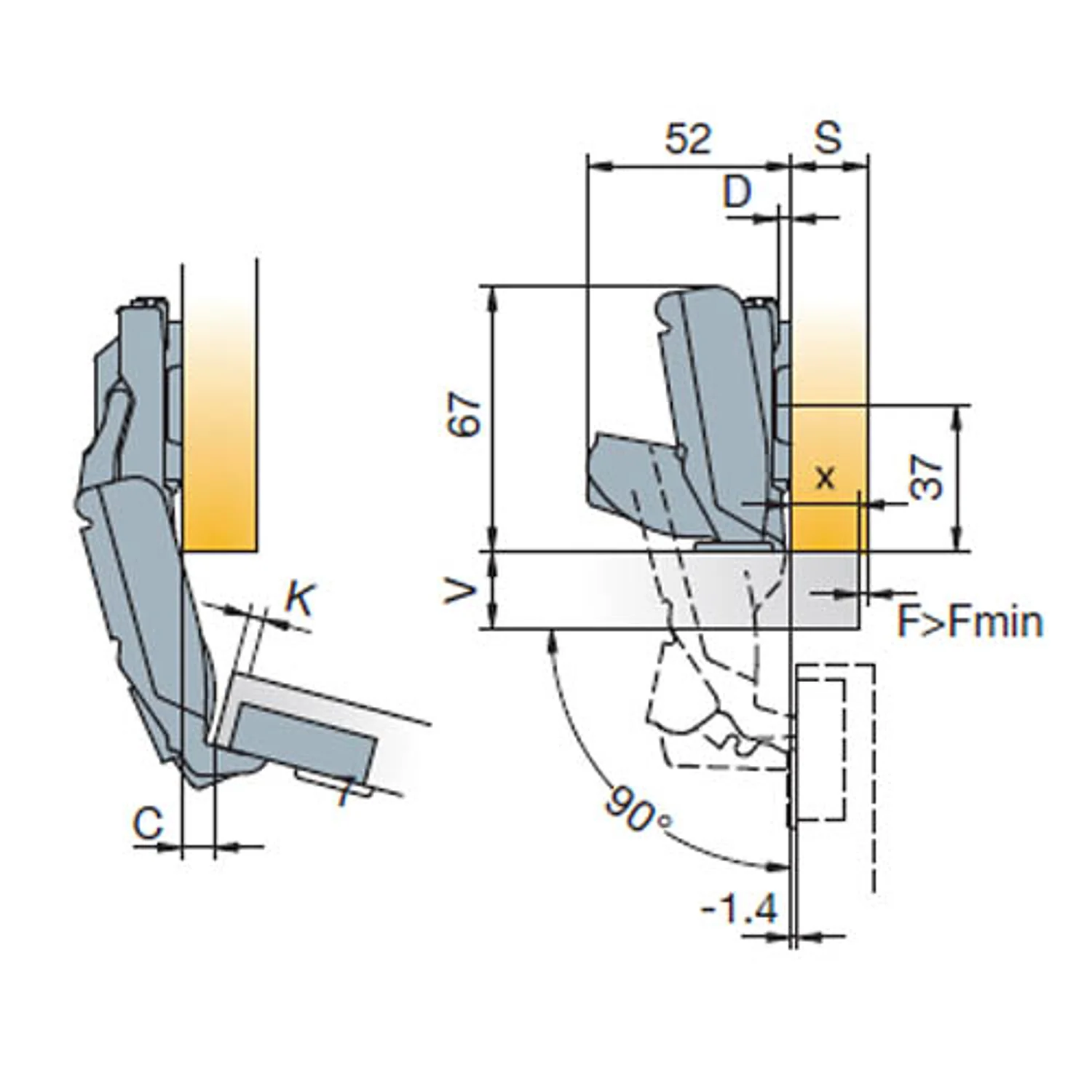

• Opening Angle: 170°
• Drilling diameter for hinge cup: 35mm
• Drilling depth: 11.7mm
• Hinge on plate mounting system: '3Way' snap-on
• Side Adjustment: +3/-1mm
• Height Adjustment: +2/-2mm
• Depth Adjustment: +4/-1mm
• Euro screws included with mounting plate. No other screws included.
